5.0SMD Series(DO-214AB)

5.0SMD Series(DO-214AB)
Part Number Power(W)
All
5000
Vrwm(V)
All
5
6
6.5
7
7.5
8
8.5
9
10
11
12
13
14
15
16
17
18
20
22
24
26
28
30
33
36
40
43
45
48
51
54
58
60
64
70
75
78
85
90
100
110
120
130
150
160
170
180
190
200
210
220
250
300
350
400
440
Vbr(V)
All
6.4
6.67
7.22
7.78
8.33
8.89
9.44
10
11.1
12.2
13.3
14.4
15.6
16.7
17.8
18.9
20
22.2
24.4
26.7
28.9
31.1
33.3
36.7
40
44.4
47.8
50
53.3
56.7
60
64.4
66.7
71.1
77.8
83.3
86.7
94.4
100
111
122
133
144
167
178
189
201
211
224
237
246
279
335
391
447
492
Vc(V)
All
9.2
10.3
11.2
12
12.9
13.6
14.4
15.4
17
18.2
19.9
21.5
23.3
24.4
26
27.6
29.2
32.4
35.5
38.9
42.1
45.4
48.4
53.3
58.1
64.5
69.4
72.7
77.4
82.4
87.1
93.6
96.8
103
113
121
126
137
146
162
177
193
209
243
259
275
292
308
324
356
405
486
567
648
713
Ipp(A)
All
6.16
6.72
7.7
9.1
12
13.7
14.6
15.5
16.5
17.5
18.5
19.7
21
24.4
26.4
28.8
31.5
34.9
37.2
40.5
42.1
45.1
49.5
52.7
54.5
58.6
61.9
65.9
70.2
73.5
79.1
87.8
95.7
105.4
112.3
121.1
131.1
143.7
157.4
174.7
184.8
196.2
209
219.8
237.2
256.3
280.2
300
331.2
354.2
357
395.3
425
455.4
495.1
554.3
Ir@25°C(μA)
All
2
15
20
50
150
250
1000
2000
5000
Package
All
SMC

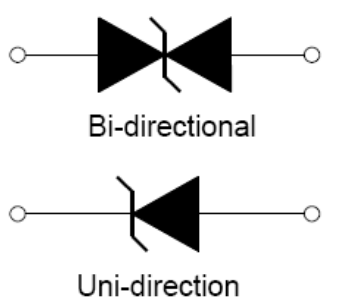

Inner Diagram Data sheet
5.0SMDJ5.0A 5.0SMDJ5.0CA 5000 5 6.4 9.2 554.3 5000 SMC 5.0SMDJ5.0A 5.0SMDJ5.0CA
5.0SMDJ5.0A 5.0SMDJ5.0CA
5.0SMDJ6.0A 5.0SMDJ6.0CA 5000 6 6.67 10.3 495.1 5000 SMC 5.0SMDJ6.0A 5.0SMDJ6.0CA
5.0SMDJ6.0A 5.0SMDJ6.0CA
5.0SMDJ6.5A 5.0SMDJ6.5CA 5000 6.5 7.22 11.2 455.4 2000 SMC 5.0SMDJ6.5A 5.0SMDJ6.5CA
5.0SMDJ6.5A 5.0SMDJ6.5CA
5.0SMDJ7.0A 5.0SMDJ7.0CA 5000 7 7.78 12 425 1000 SMC 5.0SMDJ7.0A 5.0SMDJ7.0CA
5.0SMDJ7.0A 5.0SMDJ7.0CA
5.0SMDJ7.5A 5.0SMDJ7.5CA 5000 7.5 8.33 12.9 395.3 250 SMC 5.0SMDJ7.5A 5.0SMDJ7.5CA
5.0SMDJ7.5A 5.0SMDJ7.5CA
5.0SMDJ8.0A 5.0SMDJ8.0CA 5000 8 8.89 13.6 357 150 SMC 5.0SMDJ8.0A 5.0SMDJ8.0CA
5.0SMDJ8.0A 5.0SMDJ8.0CA
5.0SMDJ8.5A 5.0SMDJ8.5CA 5000 8.5 9.44 14.4 354.2 50 SMC 5.0SMDJ8.5A 5.0SMDJ8.5CA
5.0SMDJ8.5A 5.0SMDJ8.5CA
5.0SMDJ9.0A 5.0SMDJ9.0CA 5000 9 10 15.4 331.2 20 SMC 5.0SMDJ9.0A 5.0SMDJ9.0CA
5.0SMDJ9.0A 5.0SMDJ9.0CA
5.0SMDJ10A 5.0SMDJ10CA 5000 10 11.1 17 300 15 SMC 5.0SMDJ10A 5.0SMDJ10CA
5.0SMDJ10A 5.0SMDJ10CA
5.0SMDJ11A 5.0SMDJ11CA 5000 11 12.2 18.2 280.2 2 SMC 5.0SMDJ11A 5.0SMDJ11CA
5.0SMDJ11A 5.0SMDJ11CA
5.0SMDJ12A 5.0SMDJ12CA 5000 12 13.3 19.9 256.3 2 SMC 5.0SMDJ12A 5.0SMDJ12CA
5.0SMDJ12A 5.0SMDJ12CA
5.0SMDJ13A 5.0SMDJ13CA 5000 13 14.4 21.5 237.2 2 SMC 5.0SMDJ13A 5.0SMDJ13CA
5.0SMDJ13A 5.0SMDJ13CA
5.0SMDJ14A 5.0SMDJ14CA 5000 14 15.6 23.3 219.8 2 SMC 5.0SMDJ14A 5.0SMDJ14CA
5.0SMDJ14A 5.0SMDJ14CA
5.0SMDJ15A 5.0SMDJ15CA 5000 15 16.7 24.4 209 2 SMC 5.0SMDJ15A 5.0SMDJ15CA
5.0SMDJ15A 5.0SMDJ15CA
5.0SMDJ16A 5.0SMDJ16CA 5000 16 17.8 26 196.2 2 SMC 5.0SMDJ16A 5.0SMDJ16CA
5.0SMDJ16A 5.0SMDJ16CA
5.0SMDJ17A 5.0SMDJ17CA 5000 17 18.9 27.6 184.8 2 SMC 5.0SMDJ17A 5.0SMDJ17CA
5.0SMDJ17A 5.0SMDJ17CA
5.0SMDJ18A 5.0SMDJ18CA 5000 18 20 29.2 174.7 2 SMC 5.0SMDJ18A 5.0SMDJ18CA
5.0SMDJ18A 5.0SMDJ18CA
5.0SMDJ20A 5.0SMDJ20CA 5000 20 22.2 32.4 157.4 2 SMC 5.0SMDJ20A 5.0SMDJ20CA
5.0SMDJ20A 5.0SMDJ20CA
5.0SMDJ22A 5.0SMDJ22CA 5000 22 24.4 35.5 143.7 2 SMC 5.0SMDJ22A 5.0SMDJ22CA
5.0SMDJ22A 5.0SMDJ22CA
5.0SMDJ24A 5.0SMDJ24CA 5000 24 26.7 38.9 131.1 2 SMC 5.0SMDJ24A 5.0SMDJ24CA
5.0SMDJ24A 5.0SMDJ24CA
5.0SMDJ26A 5.0SMDJ26CA 5000 26 28.9 42.1 121.1 2 SMC 5.0SMDJ26A 5.0SMDJ26CA
5.0SMDJ26A 5.0SMDJ26CA
5.0SMDJ28A 5.0SMDJ28CA 5000 28 31.1 45.4 112.3 2 SMC 5.0SMDJ28A 5.0SMDJ28CA
5.0SMDJ28A 5.0SMDJ28CA
5.0SMDJ30A 5.0SMDJ30CA 5000 30 33.3 48.4 105.4 2 SMC 5.0SMDJ30A 5.0SMDJ30CA
5.0SMDJ30A 5.0SMDJ30CA
5.0SMDJ33A 5.0SMDJ33CA 5000 33 36.7 53.3 95.7 2 SMC 5.0SMDJ33A 5.0SMDJ33CA
5.0SMDJ33A 5.0SMDJ33CA
5.0SMDJ36A 5.0SMDJ36CA 5000 36 40 58.1 87.8 2 SMC 5.0SMDJ36A 5.0SMDJ36CA
5.0SMDJ36A 5.0SMDJ36CA
5.0SMDJ40A 5.0SMDJ40CA 5000 40 44.4 64.5 79.1 2 SMC 5.0SMDJ40A 5.0SMDJ40CA
5.0SMDJ40A 5.0SMDJ40CA
5.0SMDJ43A 5.0SMDJ43CA 5000 43 47.8 69.4 73.5 2 SMC 5.0SMDJ43A 5.0SMDJ43CA
5.0SMDJ43A 5.0SMDJ43CA
5.0SMDJ45A 5.0SMDJ45CA 5000 45 50 72.7 70.2 2 SMC 5.0SMDJ45A 5.0SMDJ45CA
5.0SMDJ45A 5.0SMDJ45CA
5.0SMDJ48A 5.0SMDJ48CA 5000 48 53.3 77.4 65.9 2 SMC 5.0SMDJ48A 5.0SMDJ48CA
5.0SMDJ48A 5.0SMDJ48CA
5.0SMDJ51A 5.0SMDJ51CA 5000 51 56.7 82.4 61.9 2 SMC 5.0SMDJ51A 5.0SMDJ51CA
5.0SMDJ51A 5.0SMDJ51CA
