In fields such as industrial automation, medical equipment, and environmental monitoring, flow sensors are the "central nerve" that ensures precise control of fluids - from the gas flow regulation of ventilators to the raw material transportation and measurement in petrochemicals. Their stable operation directly determines the safety and efficiency of the system. In practical applications, issues such as static electricity (ESD), power surges, and environmental interference often cause sensor signal drift, chip damage, and even complete machine failure: A chemical enterprise once experienced an electrical power surge due to grid fluctuations, causing a Coriolis mass flowmeter to fail, directly resulting in a production line shutdown for 4 hours; the flow sensor of a medical ventilator suffered from human body static electricity interference, resulting in a deviation in gas supply accuracy, posing a safety hazard to patients.

To ensure the static and surge protection of flow sensors, it is not simply a matter of stacking components; rather, it requires precise design based on principles, scenarios, and circuit modules. Shanghai Leiditech Electronic, a national high-tech enterprise with over a decade of experience in the field of static surge protection, has leveraged its practical experience in thousands of industrial/medical scenarios to transform complex protection technologies into directly applicable solutions. This article, in combination with the high-quality components and protection solutions of Shanghai Leiditech Electronic, comprehensively dissects the key points of protection, enabling engineers to avoid unnecessary detours and implement them efficiently.

1、Flow sensor classification: Different types, with a precise and targeted protection focus.

The flow sensor measures the flow by detecting physical changes such as pressure, sound waves, and magnetic fields during the fluid flow. Different types of structural principles and application scenarios have significant differences, and the protection concerns also vary.

Different types of sensors have different core components (such as electrodes, heating elements, coils) and signal characteristics (such as analog signals, digital signals), which determine that protection needs to be "tailored to the specific situation". Leiditech EMC team stresses that this is precisely the advantage of Shanghai Leiditech's electronic protection solution - it does not apply a "one-size-fits-all" approach, but instead matches targeted components based on the pain points of each sensor: For example, for electromagnetic sensors that are afraid of static interference to the electrode signal, it is recommended to prioritize low capacitance and high discharge grade ESD diodes; for differential pressure sensors that need to withstand power surges, high-power and precise clamping TVS tubes are paired to ensure that the protection effect is perfectly compatible with the sensor performance.

2、Flow sensor circuit design: Architecture, core components and protection selection

The logic of the flow sensor circuit is "signal acquisition → processing → output". The protection requirements for different modules vary significantly. Shanghai Leiditech Electronic has specially designed a full-link protection device system for the flow sensor scenario, covering all core links from rectifier tubes, TVS tubes to ESD diodes and integrated protection modules. Combined with the practical disassembly of the Leiditech EMC team, taking the commonly used Coriolis mass flowmeter in industry as an example, we will explain the protection logic and component selection of the core modules (compatible with 20-30VDC power supply and 5V/3.3V signal scenarios).

Typical circuit block diagram (core process):

AC/DC power input → Isolated/non-isolated DC/DC voltage regulation → Drive coil (around 1kHz) → Sensing detection (entry/exit coil) → Signal amplification (AMP) → Analog-to-digital conversion (ADC) → MCU processing → Interface output (4-20mA, RS485, Ethernet)

Core module and protective device selection:

Different modules require matching with different protective devices. Based on the products of Leiditech Electronic and common models in the industry, the following provides a targeted selection plan (parameters are adapted to the scenarios of 20-30VDC power supply for flow sensors and 5V/3.3V signals):

 (1) Power module: Resists grid surges and voltage fluctuations

The power module is the "first line of defense" against surge intrusion, requiring three layers of protection: rectification, voltage stabilization, and surge protection.

• Rectifier tube: Converts AC to DC, suitable for low current scenarios. Recommended is Shanghai Leiditech Electronic 1N4007 (maximum reverse voltage 1000V, forward current 1A), with low cost and high reliability;
• TVS diode: Resists power surges (such as power grid fluctuations, lightning strike induction). Recommended is Shanghai Leiditech Electronic SMBJ33CA (reverse breakdown voltage 33V, maximum clamping voltage 53V, peak power 600W), suitable for a 20-30V DC power supply for flow sensors, preventing surges from damaging the chip.
• Installation note: Leiditech EMC team emphasizes that TVS tubes should be installed close to the power inlet, with lead wire length not exceeding 5mm. Shanghai Leiditech Electronic can provide free EMC baseline testing services to help engineers verify the protection effect.

 (2) Sensor detection signal input module: Protection against ESD and signal interference

The sensing detection module (such as drive coils, inlet/outlet detection coils) directly comes into contact with the fluid signal and is susceptible to ESD and interference from surrounding equipment:

• General ESD protection: Recommended is Leiditech ESDA05CP30, with a working voltage of 5V and a breakdown voltage of 5.6V, complying with IEC 61000-4-2 ESD contact discharge ±8kV), suitable for sensors with 5V signals, can effectively prevent human static electricity from breaking through the sensor pins, and has a response time as fast as 1ns, without affecting signal transmission.
• ESD + small surge dual protection: If there are equipment start-stop interferences around, recommended to use Shanghai Leiditech Electronic SD05C, with a reverse breakdown voltage of 5V, peak power of 300W, 8/20μS waveform, balancing ESD protection and small surge suppression, which is a high-quality adapter for multiple interference scenarios.

 (3) Signal Processing Module: Ensuring the "brain" operates stably

The signal processing module (MCU, ADC chip) is the core for data processing and needs to prevent data drift caused by static electricity and voltage fluctuations:

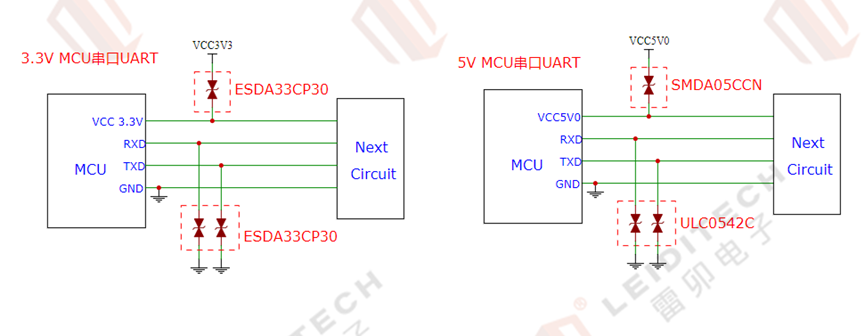

• ESD diode: It is recommended to use the ESDA33CP30 from Shanghai Leiditech Electronic. With a 3.3V operating voltage, it can withstand a contact discharge of ±8kV. It applies a DFN1006 small package, which is suitable for dense circuit board layouts, does not occupy too much space, and has a low capacitance, thus not interfering with the MCU signal.

 (4) Interface Output Module: Protect against external interface surges

The interface module (analog output, digital output, communication interface) is directly connected to external devices (PLC, host computer), and it is a "high-risk area" where surges can invade:

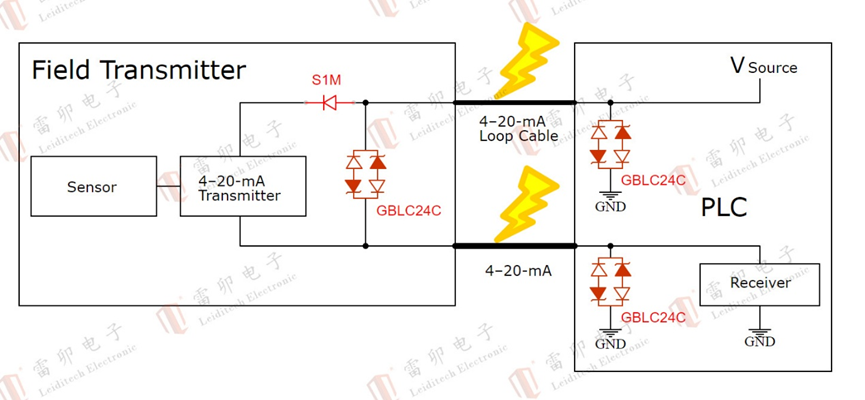

• Analog output (4-20mA): It is recommended to use the GBLC24C from Leiditech. With a reverse breakdown voltage of 24V, it is specifically designed to be compatible with industrial analog signals. It protects against electrostatic signals while not affecting the transmission of the 4-20mA current signal. It is an excellent choice for protecting the PLC interface.

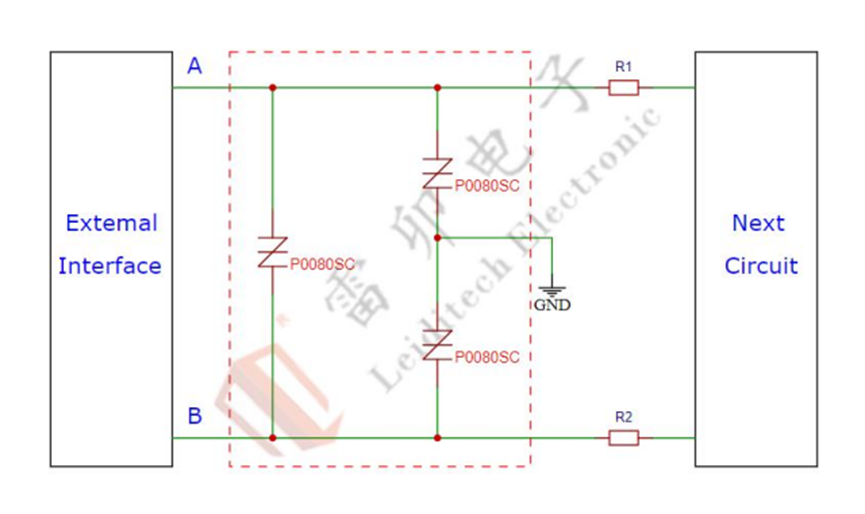

• Communication interfaces (EtherNet/IP, RS485): For the EtherNet/IP interface, the recommended integrated protective module SLVU2.8-4 with RJ45 connector is suitable for IEC61000-4-2, level 4, with a contact discharge of 30KV and an air discharge of 30KV, featuring strong anti-static capability and an integrated design that simplifies circuit layout; for the RS485 interface, P0080SC with 6V TSS semiconductor discharge tube is recommended, which is compatible with bus signals and significantly reduces the surge effect on communication lines.

Summary: The principles of protection for flow sensors

1. Targeted protection by module: The power module should prioritize TVS diodes (to resist strong surges), while the signal/interface module should choose ESD diodes (to protect against static electricity). The analog signal module should be paired with low-capacitance models to avoid signal attenuation. This is an efficient protection logic that has been verified through thousands of projects.
2. Do not blindly select parameters: The reverse breakdown voltage of TVS diodes should be slightly higher than the working voltage (for example, a 20-30VDC power supply should select a 33V TVS). The working voltage of ESD diodes should match the signal voltage (a 5V signal should select a 5V ESD diode), and the capacitance should match the signal rate.
3. Enhance protection levels based on scenarios: Industrial harsh environments require IP65 protection + TVS (such as 600W), medical scenarios require low-capacitance ESD diodes (to avoid signal interference), and outdoor scenarios require lightning surge protection (requiring high-power TVS). Shanghai Leiditech Electronics’ full range of components can meet the requirements of different scenario protection levels.

The electrostatic surge protection for the flow sensor is essentially about "understanding the principle, matching the scenario, and selecting the module based on the requirements" - there is no universal protection solution; only precise and adaptable designs can do. Shanghai Leiditech Electronic, as a leading enterprise in the field of EMC protection, provides a solid foundation for the protection solution with high-quality components, comprehensive parameter coverage, and strict reliability tests. From selection, layout to testing, they provide full support for engineers throughout the process.
