Leiditech ULC3354MPH ersetzt Littelfuse SP4045-04ATG

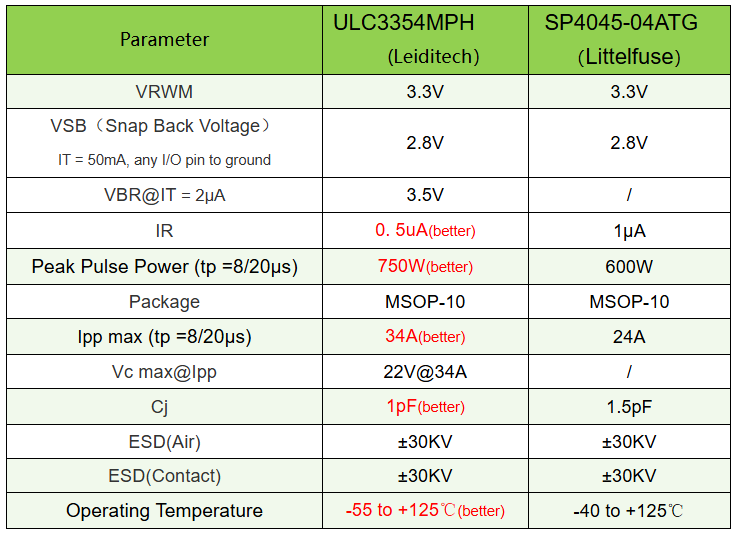

Leiditech Electronic as a leading manufacturer in the ESD protection field, it has provided a mature and complete alternative solution for Littelfuse's product line. The Leiditech ULC3354MPH is a 3.3V four-channel low-capacitance TVS diode array, packaged as MSP-10. The ULC3354MPH can completely replace the Litt SP4045-04ATG. The parameter comparison is as follows:

List notes: Vrwm: Reverse turn-off voltage, Vbr: Breakdown voltage, VC max@A: VC measured under maximum IPP conditions, Cj: junction capacitance
Based on the above parameter comparison, the Leiditech ULC3354MPH is superior to the Littelfuse SP4045-04ATG in terms of leakage current, pulse peak power, peak current value, junction capacitance and operating temperature range. Therefore, it can be completely replaced.
If you are currently using the above-mentioned Littelfuse part number and need a alternative, you can contact the salesperson of Leiditech to apply for a sample test.
Application:
l HDBaseT Protector
l 10/100/1000 Ethernet
l 2.5 and 5 Gigabit Ethernet
l T1/E1 and T3/E3 Secondary Protection
l A/V Equipment
l General Purpose High-Speed Data Lines
Leiditech ULC3354MPH datasheet:
