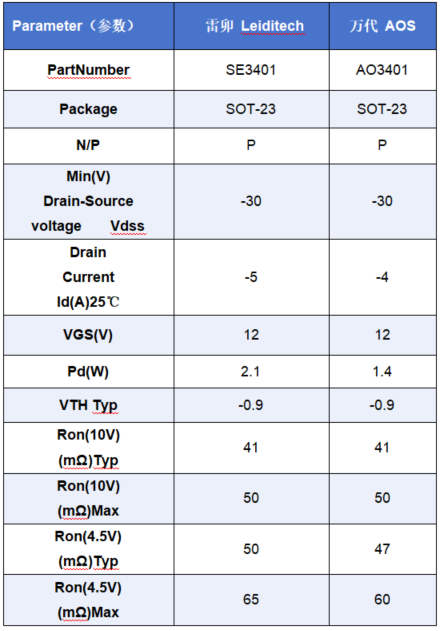

Shanghai Leiditech's PMOS model SE3401 is a pin-to-pin alternative to AOS's model AO3401. Many customers have already chosen SE3401 to replace AO3401, and they can enjoy better prices and faster delivery times. It is especially favored in some small electronic devices with space limitations. The parameter comparison is as follows:

The following is a summary of the main application fields of SE3401 (P-channel MOSFET), taking into account its low on-resistance, high switching efficiency and small package (SOT-23) features.

一、Core features and application foundation

Electrical parameters: Rated voltage VDS: -30V, Current: -5.0A;

Low on-resistance: 41 mΩ at 10V, 50 mΩ at 4.5V, reducing power consumption and heat generation.

Packaging advantages: SOT-23 package, small size, suitable for high-density circuit design.

二、Power Management and Protection Circuit Applications

Reverse protection circuit:

Replacement diode, with a lower voltage drop (only 41 mΩ at 10V), reducing unnecessary power loss;

When the power supply is reversed, it will quickly cut off to prevent damage to the equipment.

2. Load Switch and Power Distribution:

Used for power on/off control of mobile devices, computer motherboards, etc., and supports PWM voltage regulation;

Control the power supply of the radio frequency amplifier in the 5G small base station, with a response time of approximately 60ns.

三、Portable electronic device applications

1. Battery Management System:

Mobile phone/battery protection board: Prevents overcharging and overdischarging, and supports reverse connection protection;

Portable power bank, electronic cigarette: Efficient switch control, extended battery life.

2. Power control for small equipment:

MP3/Bluetooth headphones/GPS device: Low-power design suitable for USB power supply scenarios.

四、Power supply and motor drive applications

1. DC-DC Conversion and Inversion:

Power inverter, in-car DVD: Supports -30V high-voltage switch, compatible with automotive electronic requirements;

Synchronous rectifier circuit: High-speed switching characteristics enhance conversion efficiency.

2. Motor and LED Driver:

Micro motors (such as those in drones and power tools): Provide stable driving current;

LED lighting / display: Constant current regulation ensures stable brightness.

 五、Application in the fields of industry and new energy

1. Industrial equipment:

Stepper motor drive, electric drill tool: Resistant to high pressure, shockproof;

Industrial switching power supply: Low heat loss design reduces the need for cooling.

2. Green Energy System:

Photovoltaic inverters and charging stations: Efficient energy conversion;

Electric vehicle related: Automotive HID ballast, Electric bicycle controller.

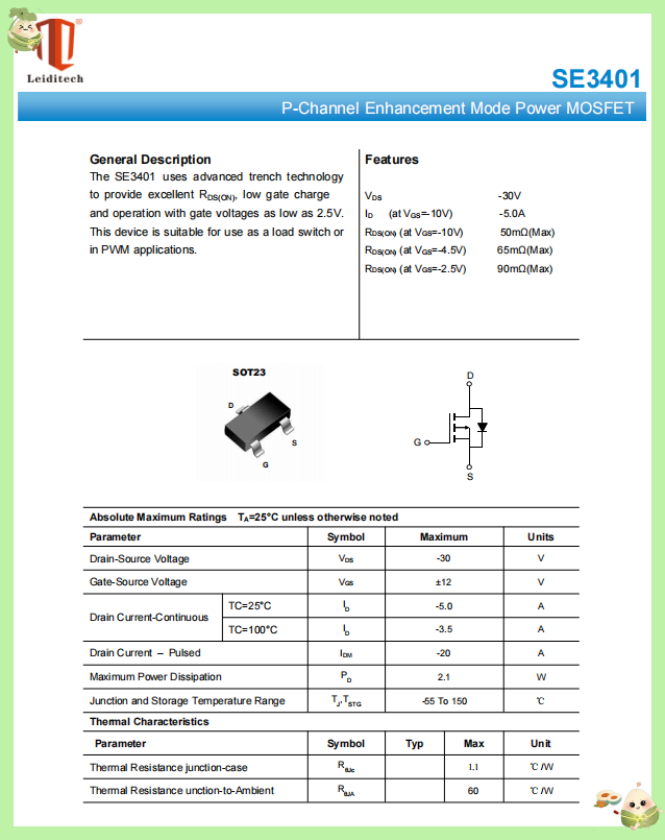

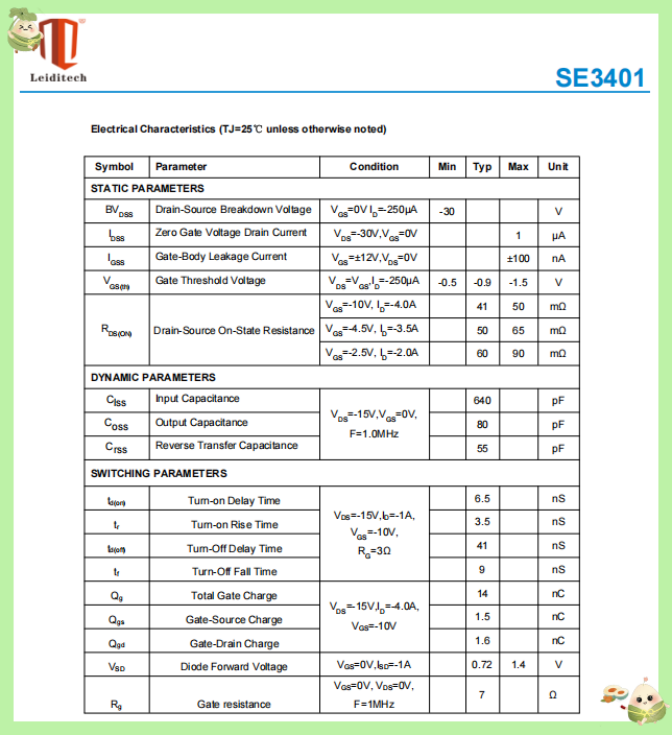

In conclusion, the SE3401 boasts three key advantages: low internal resistance, fast response, and small size. As a result, it is an ideal choice for power protection, portable devices, motor drives, and industrial systems. If a substitute solution is needed (such as a domestic alternative), the Leiditech brand can offer a Pin-Pin compatible solution of the same model, with lower cost and similar parameters. For specific design suggestions, please refer to the SE3401 device manual to ensure compatibility.
